Cooler Master Elite V2 - 550W Long-Lasting Power Supply with Full Electrical Protection (OVP / UVP / OPP / OCP / SCP)

$59.95 $54.95

COOLER MASTER Elite V2 RS550-PCARN1-US 550W ATX 12V V2.3 Power Supply

The reliable, efficient and affordable line of Elite power supplies is ideal for mainstream and basic computing systems. Built with quality components and dual +12V outputs, the Elite V2 is fit to handle demands of high power requirements. The Elite V2 reaches 75% efficiency at typical loading and meets fully protection (OVP/UVP/OPP/OCP/SCP)

  • Support dual +12V1 and +12V2 outputs for higher power usage
  • >75% Efficiency at typical load operation
  • One 4 + 4-pin +12V CPU connector for high-end CPU support
  • 120mm Quiet fan with intelligent fan speed controller
  • Compliance with Intel ATX12V V2.3
  • Fully protection design (OVP/UVP/OPP/OCP/SCP)

Product Highlights

  • Hexagonal Mesh
Elite V2

Hexagonal mesh increases airflow for better heat dissipation

  • 120mm Intelligent Fan
Elite V2

120mm intelligent sleeve fan speed controller

Connectors

Elite V2

M/B 20 + 4-Pin x 1

Elite V2

CPU 4 + 4-Pin x 1

Elite V2

PCI-E 6 + 2-Pin x 2

Elite V2

SATA x 6

Elite V2

Peripheral x 3

Elite V2

Floppy x 1

AC Input / DC Output

AC Input 115 ~ 230VAC | 8/4A | 60/50Hz
DC Output +3.3V +5V +12V1 +12V2 -12V +5VSB
22A 15A 23A 20A 0.3A 2.5A
Output Power 120W 384W 3.6W 12.5W

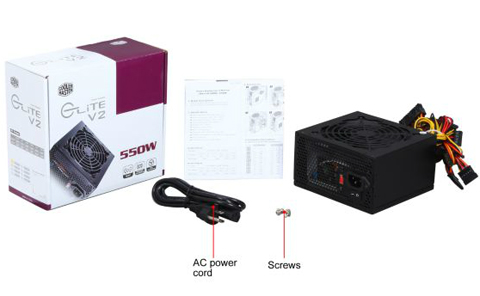

What's in the Box

Elite V2
